LIONZOL ‘Vinyl Sulphone’ Based
These are vinyl sulphone based reactive dyes widely used for dyeing & printing of cellulosic fibres for its very good fastnes.
| LIONZOL "VS" | C.I. Number | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Substantivity | Solubility at 30°C | Dischargability | Day Light 1/1 & 1/6 | Washing ISO4 | Hypochlorite Bleach | Exhaust 40 C & 60°C | One Bath Pad Batch | One Bath Pad Dry Steam | ||||||||
| 1% | 4% | |||||||||||||||
| Yellow-FG | Y 42 | L | 100 | G | 4-5 | 5 | 5 | 5 | 1 | FS | S | S | S | S | ||
| Yellow-GL | Y 37 | H | 80 | G | 6 | 4 | 5 | 5 | 2-3 | S | S | S | S | FS | ||
| G. Yellow-G | Y 17 | H | 100 | G | 4-5, 6 | 5 | 5 | 5 | 1 | S | S | S | S | FS | ||
| Yellow-GR | Y 15 | H | 100 | G | 4-5, 6 | 5 | 5 | 5 | 1 | S | S | S | S | FS | ||
| G. Yellow-RNL | Y 107 | M | 100 | G | 4-5, 5 | 4-5 | 5 | 5 | 1 | S | S | S | S | S | ||
| G.Yellow-R | Y 77 | H | 150 | G | 4-5, 4 | 4-5 | 4 | 4 | 1-2 | S | S | FS | FS | S | ||
| Orange-3R | O 16 | H | 80 | G | 5-6 | 4-5 | 4-5 | 4-5 | 1 | S | NS | S | S | S | ||
| Red-5B | R 35 | L | 80 | G | 3-4 | 5 | 5 | 5 | 1 | FS | S | S | S | S | ||
| Red-BB | R 21 | M | 100 | P | 5 | 5 | 4-5 | 4-5 | 4 | S | S | S | S | S | ||
| Red-RB | R 198 | M | 100 | F | 5 | 4-5 | 4 | 4-5 | 4 | S | S | S | S | S | ||
| Red-BS | R 111 | H | 80 | G | 5-6 | 4-5 | 4-5 | 4-5 | 1 | S | NS | S | S | S | ||
| Red-CD | R 278 | L | 80 | G | 3-4, 4 | 5 | 5 | 5 | 1 | FS | S | S | S | S | ||
| Violet-5R | V 5 | M | 100 | P | 5-6 | 4 | 5 | 5 | 2 | S | S | S | S | FS | ||
| T. Blue-G | B 21 | H | 80 | P | 6 | 4-5 | 4-5 | 4-5 | 3 | S | S | S | S | S | ||
| Blue-3R | B 28 | H | 80 | G | 6 | 4-5 | 4-5 | 4-5 | 3 | S | S | S | S | S | ||
| Blue-BB | B 220 | M | 100 | G | 4-5 | 5 | 4 | 4-5 | 2-3 | FS | S | FS | FS | S | ||
| Blue-R | B 19 | L | 150 | F | 4-5 | 5 | 5 | 4-5 | 4 | FS | S | FS | FS | S | ||
| N. Blue-GG | B 203 | M | 100 | F | 4-5 | 4-5 | 4-7 | 4-5 | 2-3 | S | S | FS | FS | S | ||
| Green-6B | B 38 | M | 80 | G | 5-6 | 5 | 5 | 5 | 1 | S | S | S | S | S | ||
| Black-RL | BL 31 | H | 100 | F | 6 | 5 | 5 | 5 | 1 | S | S | S | S | S | ||
| Black-B | BL 5 | H | 150 | G | 4 | 5 | 5 | 5 | 1 | S | S | S | S | S | ||
Exhaust Dyeing
Cold Pad Batch Dyeing

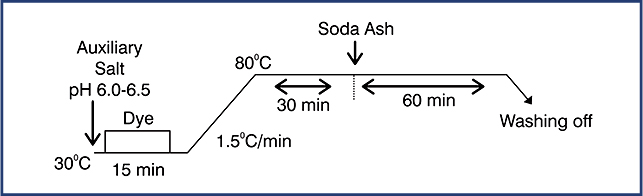

Turquoise Dyeing Method
Pad-Dry -Chemical Pad-Steam Method
| Single Alkali Method | ||
|---|---|---|
| % Dye | Common Salt(g/l) | Soda Ash(g/l) |
| <0.1 | 20 | 5 |
| 0.1 – 0.5 | 20 – 25 | 5 – 7 |
| 0.5 – 1.0 | 25 – 40 | 7 – 10 |
| 1.0 – 2.0 | 40 – 50 | 10 – 13 |
| 2.0 – 3.0 | 50 – 60 | 13 – 15 |
| 3.0 – 5.0 | 60 – 80 | 15 – 20 |
| 5.0 – 7.0 | 80 – 90 | 20 |
| >7.0 | 100 | 20 |
| Mixed Alkali Method | |||
|---|---|---|---|
| % Dye | Common Salt(g/l) | Soda Ash(g/l) | Caustic Flakes(g/l) |
| <0.1 | 20 | 5 | 0 |
| 0.1 – 0.5 | 20 – 25 | 5 | 0.3 – 0.38 |
| 0.5 – 1.0 | 25 – 40 | 5 | 0.38 – 0.45 |
| 1.0 – 2.0 | 40 – 50 | 5 | 0.45 – 0.6 |
| 2.0 – 3.0 | 50 – 60 | 5 | 0.6 – 0.75 |
| 3.0 – 5.0 | 60 – 80 | 5 | 0.75 – 1.0 |
| 5.0 – 7.0 | 80 – 90 | 5 | 1.0 |
| >7.0 | 100 | 5 | 1.0 |
Mixing Pump REquired
| Silicate Method | ||
|---|---|---|
| Dye (g/l) | Sodium Silicate(38° Be) | Caustic Flakes (g/l) |
| <5 | 100 ml/l | 2 |
| 10 – 20 | 100 ml/l | 3 – 3.5 |
| 20 – 30 | 100 ml/l | 3.5 – 4.0 |
| 30 – 40 | 100 ml/l | 4.0 – 4.5 |
| 40 – 60 | 100 ml/l | 4.5 – 5.0 |
| 60 – 80 | 100 ml/l | 5.0 – 5.5 |
| 80 – 100 | 100 ml/l | 5.5 – 7.0 |
| Silicate Free Method | ||
|---|---|---|
| Dye(g/l) | Soda Ash(g/l) | Caustic Flakes(g/l) |
| 20 | 30 | 2 |
| 40 | 30 | 3 |
| 60 | 30 | 4 |
| 80 | 30 | 5 |
| 100 | 30 | 6 |
| >100 | 30 | 7 |
| Silicate Method | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| % Dye | Glaubers Salt(g/l) | Soda Ash(g/l) | ||||||||||||||||||||||||||||||||||||||||
| <0.1 | 20 | 3 | ||||||||||||||||||||||||||||||||||||||||
| 0.1 – 0.5 | 20 – 25 | 3 | ||||||||||||||||||||||||||||||||||||||||
| 0.5 – 1.0 | 25 – 40 | 3 – 5 | ||||||||||||||||||||||||||||||||||||||||
| 1.0 – 2.0 | 40 – 50 | 5 – 8 | ||||||||||||||||||||||||||||||||||||||||
| 2.0 – 3.0 | 50 – 60 | 8 – 10 | ||||||||||||||||||||||||||||||||||||||||
| 3.0 – 5.0 | 60 – 80 | 10 – 12 | ||||||||||||||||||||||||||||||||||||||||
| 5.0 – 7.0 | 80 – 90 | 15 | ||||||||||||||||||||||||||||||||||||||||
| >7.0 | 100 | 20 | ||||||||||||||||||||||||||||||||||||||||
| Pad-Dry -Chemical Pad-Steam Method | |||
|---|---|---|---|
| Dye (g/l) | Common Salt (g/l) | Soda ash (g/l) | Caustic Flakes (g/l) |
| <20 | 250 | 20 | 1.5 |
| 20 – 40 | 250 | 20 | 2 |
| >40 | 250 | 20 | 3 |
Product Placement
Advantage
Abbreviations
Dischargeability
| Light shades | Yellow GR |
| Orange 3R | |
| Red BB | |
| Blue BB | |
| Medium Shades | |
| Golden Yellow RNL | |
| Red RB | |
| Blue BB | |
| Deep Shades | Golden Yellow RNL |
| Red BB | |
| Navy Blue GG | |
| Black B |
- Economical multi use product range
- Broad selection available from wide shade range
- Range of products suitable for Discharge ground
- Good fastness properties
Bl – Bluer
Br – Brighter
DI – Duller
Dk – Darker
G – Greener
R – Redder
Y – Yellower
S – Suitable
NS – Not Suitable
D – Dischargeable
F – Fair (Partial Dischargeable)
P – Poor (Non Dischargeable)
